Commidity: Single Phase Anti-backcurrent Smart Power Meter

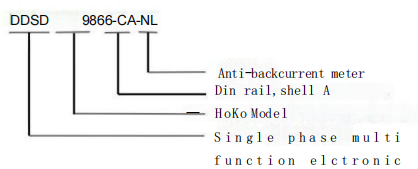

Model NO: DDSD9866-CA-NL

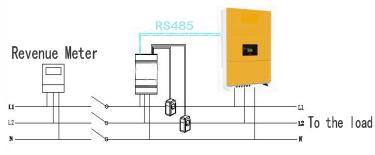

Application Scenarios: Used in photovoltaic power generation system to actively prevent or control the situation of reverse current when the power generation power is greater than the actual load.
Product Overview:
The meter adopts guide rail installation, is especially suitable for Application with narrow installation space,and detects current, voltage,
Power, electric energy and other parameters in the loop.support RS485 communication, Modbus RTU protocol. In a single-inverter system,
the meter is connected directly to the inverter,and if your drive has a built-in income rating table (RGM: this drive is called an income class
inverter), you can connect an external meter on the same bus as the RGM
.png)
Key Feature:
|
Parameter |
Data |
|
Rated Voltage line to N |
120V |
|
Rated Voltage line to line |
208-204V |
|
Extended Voltage Range |
88%-110% |
|
AC Frequency |
60Hz |
|
Supported Meshes |
L1/L2/N/PE |
|
Power Consumption |
1.2W |
|
Communication Interface |
RS485 |
|
Corresponding Time |
≤1s |
|
Meter Accuracy |
100A, 200A |
|
CT Current 1%-100% |
±0.5%, ±1% |
|
Current Transformer Number |
2 sets |
|
Size(length x width x height) |
85.5×41×67.3mm |
|
Weight |
0.2kg |
|
Shell Type |
PC plastic UL94V-0 |
|
Working Temperature |
-30~70℃ |
|
Relative Humidity |
5%-90% no condensation |
|
Installation |
DIN-Rail, 35mm |
.png)

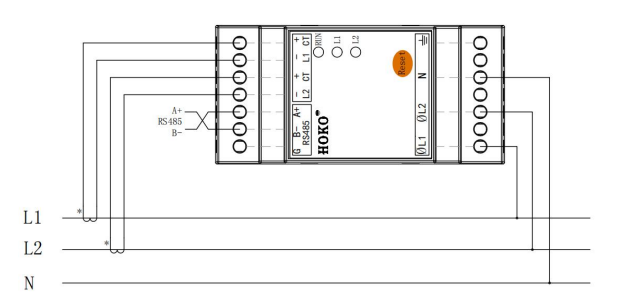

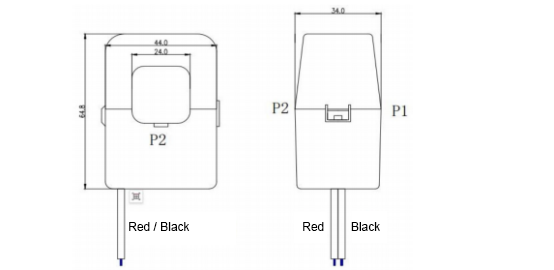

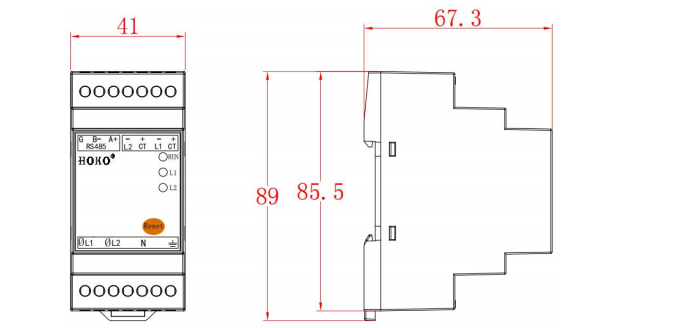

INSTALLATION AND DIMENTION
.png)
.png)
.png)
DDSD9866-CA-NL Single Phase Anti-backcurrent Smart Power Meter
