Product Name

Knx485/232 Gateway

Knx485 Gateway

Knx232 Gateway

Model

HKL-X2717412J

HKL-X2485412J

HKL-X2232412J

Power Supply

Operating Voltage

21-30V DC, obtained through EIB bus

Input Voltage

12-30V DC, input through auxiliary power supply interface

Input

Channel

2

2

2

Output Voltage

9~30V DC

9~30V DC

9~30V DC

Static

Power Consumption

42mW(12V), 75mW

42mW(12V), 75mW

42mW(12V), 75mW

Max

Power Consumption

120mW(12V), 144mW(24V)

120mW(12V), 144mW(24V)

120mW(12V), 144mW(24V)

Wiring Mode

EIB/KNX

EIB bus connection terminals, connected using screw terminals

Load Output

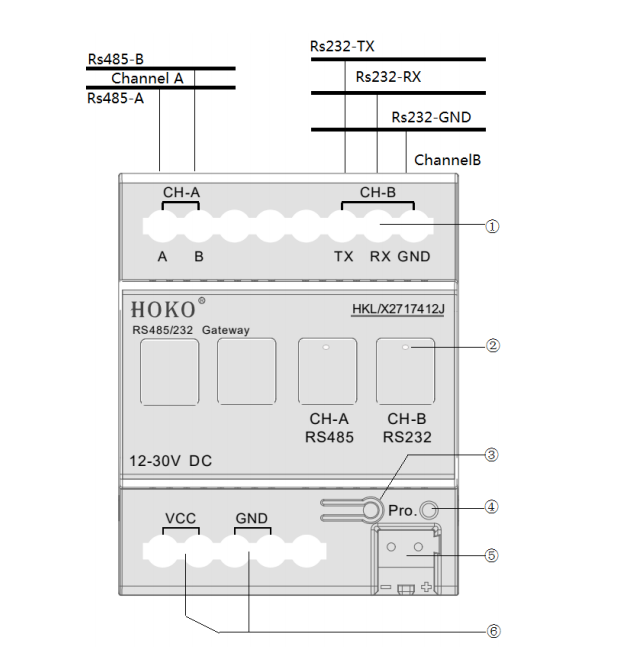

A-Channel, RS485: A/B

B-Channel, RS232: RX/TX/GND

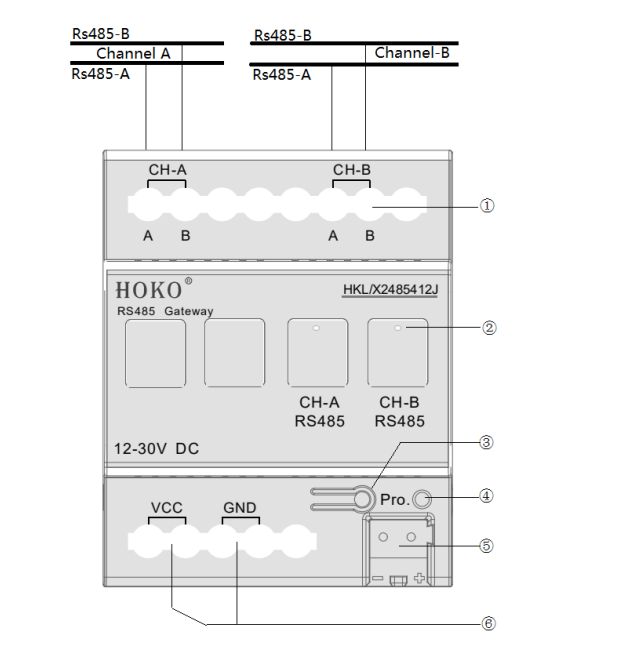

2xRS485：A/B

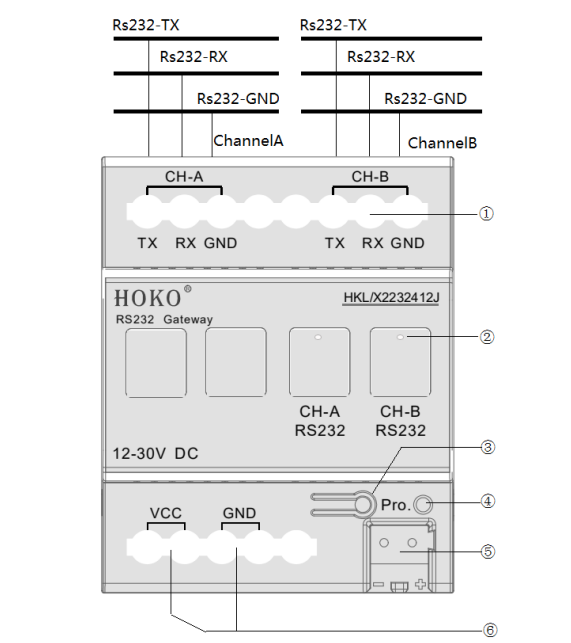

2xRS23：RX/TX/GND

Cable cross-section

Single core 0.2- 6.0mm²

Multi core 0.2- 4.0mm²

Protection Type Level

IP20, EN60 529

Environmental Temperature

Operating Temperature

-5℃ ~45℃

-25℃ ~55℃

-25℃ ~70℃

Storage Temperature

Transportation Temperature

Ambient Condition

Humidity<93%, no condensation

Installation method

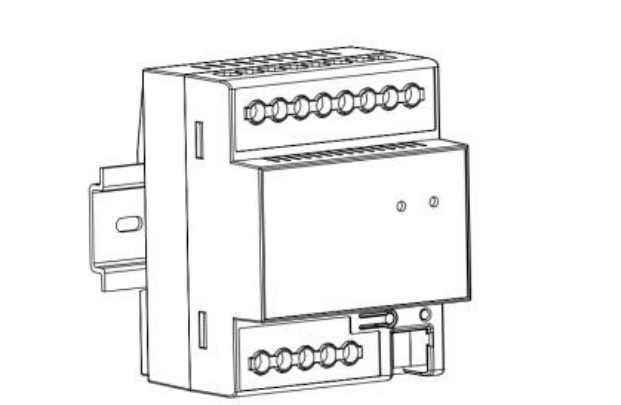

Standard 35mm DIN rail installation

Size

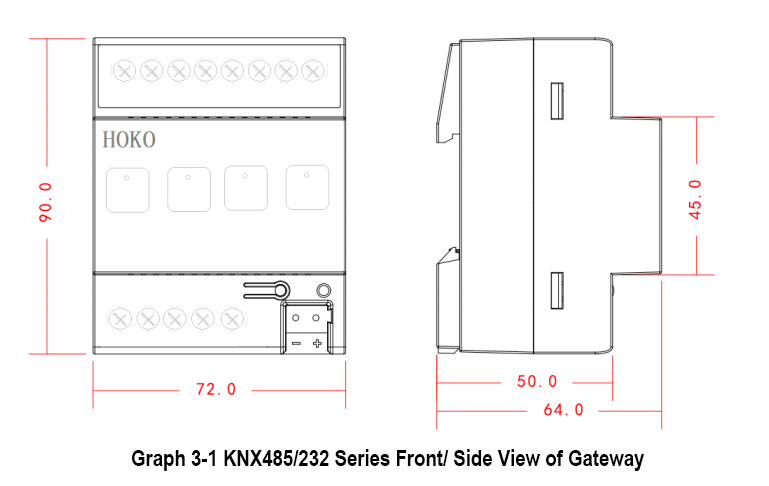

90×72×64mm (H×W×D)

Weight

KG

0.4

0.4

0.4

CE Standard

Complies with EMC standards and low voltage standards
